tidymodelsによるtidyな機械学習フロー(その2:Cross Varidation)

はじめに

本記事ではtidymodelsを用いたCross Validationとハイパーパラメータのチューニングについて紹介したいと思います。 なお、tidymodelsの基本的な操作方法については以下の記事をご覧下さい。

dropout009.hatenablog.com

前処理

まずは前回の記事と同様、訓練/テストデータの分割と前処理を行います。なお、例によってデータはdiamondsを用います。

# パッケージ
library(tidyverse)
library(tidymodels)
set.seed(42)

# 分割
df_split = initial_split(diamonds,  p = 0.8)

df_train = training(df_split)
df_test  = testing(df_split)

# 前処理レシピ
rec = recipe(price ~ ., data = df_train) %>%
  step_log(price) %>%
  step_ordinalscore(all_nominal())

Cross Validation

さて、ここからが新しい内容になります。

df_cv = vfold_cv(df_train, v = 10)

> df_cv
#  10-fold cross-validation
# A tibble: 10 x 2
   splits               id
   <list>               <chr>
 1 <split [38.8K/4.3K]> Fold01
 2 <split [38.8K/4.3K]> Fold02
 3 <split [38.8K/4.3K]> Fold03
 4 <split [38.8K/4.3K]> Fold04
 5 <split [38.8K/4.3K]> Fold05
 6 <split [38.8K/4.3K]> Fold06
 7 <split [38.8K/4.3K]> Fold07
 8 <split [38.8K/4.3K]> Fold08
 9 <split [38.8K/4.3K]> Fold09
10 <split [38.8K/4.3K]> Fold10

tidymodels配下のrsampleパケージにはCross Validationを行うための関数vfold_cv()があるので、これを使います。

> df_cv$splits[[1]]
<38837/4316/43153>

splitsを確認します。全43153サンプルを38837の訓練データと4316の検証データに分割していることを示しています。

> df_cv$splits[[1]] %>% analysis()
# A tibble: 38,837 x 10
   carat cut       color clarity depth table price     x     y     z
   <dbl> <ord>     <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
 1 0.23  Ideal     E     SI2      61.5    55   326  3.95  3.98  2.43
 2 0.21  Premium   E     SI1      59.8    61   326  3.89  3.84  2.31
 3 0.23  Good      E     VS1      56.9    65   327  4.05  4.07  2.31
 4 0.290 Premium   I     VS2      62.4    58   334  4.2   4.23  2.63
 5 0.31  Good      J     SI2      63.3    58   335  4.34  4.35  2.75
 6 0.24  Very Good J     VVS2     62.8    57   336  3.94  3.96  2.48
 7 0.26  Very Good H     SI1      61.9    55   337  4.07  4.11  2.53
 8 0.22  Fair      E     VS2      65.1    61   337  3.87  3.78  2.49
 9 0.23  Very Good H     VS1      59.4    61   338  4     4.05  2.39
10 0.3   Good      J     SI1      64      55   339  4.25  4.28  2.73

> df_cv$splits[[1]] %>% assessment()
# A tibble: 4,316 x 10
   carat cut       color clarity depth table price     x     y     z
   <dbl> <ord>     <ord> <ord>   <dbl> <dbl> <int> <dbl> <dbl> <dbl>
 1  0.24 Very Good I     VVS1     62.3    57   336  3.95  3.98  2.47
 2  0.3  Very Good J     VS2      62.2    57   357  4.28  4.3   2.67
 3  0.23 Very Good F     VS1      59.8    57   402  4.04  4.06  2.42
 4  0.31 Good      H     SI1      64      54   402  4.29  4.31  2.75
 5  0.32 Good      H     SI2      63.1    56   403  4.34  4.37  2.75
 6  0.22 Premium   E     VS2      61.6    58   404  3.93  3.89  2.41
 7  0.3  Very Good I     SI1      63      57   405  4.28  4.32  2.71
 8  0.24 Premium   E     VVS1     60.7    58   553  4.01  4.03  2.44
 9  0.26 Very Good D     VVS2     62.4    54   554  4.08  4.13  2.56
10  0.86 Fair      E     SI2      55.1    69  2757  6.45  6.33  3.52
# ... with 4,306 more rows

訓練データにはanalysis()で、検証データにはassesment()でアクセスできます。

CVデータが準備できたので、学習と予測を行いましょう。まずは適当なRandom Forestモデルを用意します。

rf = rand_forest(mode = "regression",
                 trees = 50,
                 min_n = 10,
                 mtry = 3) %>%
  set_engine("ranger", num.threads = parallel::detectCores(), seed = 42)

CVデータに前処理レシピを適用するにはmap()prepper()を使います。

> df_cv %>%
+   mutate(recipes = map(splits, prepper, recipe = rec))
#  10-fold cross-validation
# A tibble: 10 x 3
   splits               id     recipes
 * <list>               <chr>  <list>
 1 <split [38.8K/4.3K]> Fold01 <S3: recipe>
 2 <split [38.8K/4.3K]> Fold02 <S3: recipe>
 3 <split [38.8K/4.3K]> Fold03 <S3: recipe>
 4 <split [38.8K/4.3K]> Fold04 <S3: recipe>
 5 <split [38.8K/4.3K]> Fold05 <S3: recipe>
 6 <split [38.8K/4.3K]> Fold06 <S3: recipe>
 7 <split [38.8K/4.3K]> Fold07 <S3: recipe>
 8 <split [38.8K/4.3K]> Fold08 <S3: recipe>
 9 <split [38.8K/4.3K]> Fold09 <S3: recipe>
10 <split [38.8K/4.3K]> Fold10 <S3: recipe>

prepper()prep()前のレシピを渡すことで、CV訓練データを用いてprep()したレシピを返してくれます。

次に前処理済みのCVデータでモデルを学習します。

> df_cv %>%
+   mutate(recipes = map(splits, prepper, recipe = rec),
+          fitted = map(recipes, ~ fit(rf, price ~ ., data = juice(.))))
#  10-fold cross-validation
# A tibble: 10 x 4
   splits               id     recipes      fitted
 * <list>               <chr>  <list>       <list>
 1 <split [38.8K/4.3K]> Fold01 <S3: recipe> <fit[+]>
 2 <split [38.8K/4.3K]> Fold02 <S3: recipe> <fit[+]>
 3 <split [38.8K/4.3K]> Fold03 <S3: recipe> <fit[+]>
 4 <split [38.8K/4.3K]> Fold04 <S3: recipe> <fit[+]>
 5 <split [38.8K/4.3K]> Fold05 <S3: recipe> <fit[+]>
 6 <split [38.8K/4.3K]> Fold06 <S3: recipe> <fit[+]>
 7 <split [38.8K/4.3K]> Fold07 <S3: recipe> <fit[+]>
 8 <split [38.8K/4.3K]> Fold08 <S3: recipe> <fit[+]>
 9 <split [38.8K/4.3K]> Fold09 <S3: recipe> <fit[+]>
10 <split [38.8K/4.3K]> Fold10 <S3: recipe> <fit[+]>

学習モデルを用いて検証用データに対して予測を行います。

# ラッパーを作っておく
pred_wrapper = function(split_obj, rec_obj, model_obj, ...) {
  df_pred = bake(rec_obj, assessment(split_obj)) %>%
    bind_cols(predict(model_obj, .)) %>%
    select(price, .pred)

  return(df_pred)
}

> df_cv %>%
+   mutate(recipes = map(splits, prepper, recipe = rec),
+          fitted = map(recipes, ~ fit(rf, price ~ ., data = juice(.))),
+          predicted = pmap(list(splits, recipes, fitted), pred_wrapper))
#  10-fold cross-validation
# A tibble: 10 x 5
   splits               id     recipes      fitted   predicted
 * <list>               <chr>  <list>       <list>   <list>
 1 <split [38.8K/4.3K]> Fold01 <S3: recipe> <fit[+]> <tibble [4,316 × 2]>
 2 <split [38.8K/4.3K]> Fold02 <S3: recipe> <fit[+]> <tibble [4,316 × 2]>
 3 <split [38.8K/4.3K]> Fold03 <S3: recipe> <fit[+]> <tibble [4,316 × 2]>
 4 <split [38.8K/4.3K]> Fold04 <S3: recipe> <fit[+]> <tibble [4,315 × 2]>
 5 <split [38.8K/4.3K]> Fold05 <S3: recipe> <fit[+]> <tibble [4,315 × 2]>
 6 <split [38.8K/4.3K]> Fold06 <S3: recipe> <fit[+]> <tibble [4,315 × 2]>
 7 <split [38.8K/4.3K]> Fold07 <S3: recipe> <fit[+]> <tibble [4,315 × 2]>
 8 <split [38.8K/4.3K]> Fold08 <S3: recipe> <fit[+]> <tibble [4,315 × 2]>
 9 <split [38.8K/4.3K]> Fold09 <S3: recipe> <fit[+]> <tibble [4,315 × 2]>
10 <split [38.8K/4.3K]> Fold10 <S3: recipe> <fit[+]> <tibble [4,315 × 2]>

pmap()は入力列が複数の場合のmap()の拡張です。

予測結果を用いて検証用データで精度を計算して完了です。

> df_cv %>%
+   mutate(recipes = map(splits, prepper, recipe = rec),
+          fitted = map(recipes, ~ fit(rf, price ~ ., data = juice(.))),
+          predicted = pmap(list(splits, recipes, fitted), pred_wrapper),
+          evaluated = map(predicted, metrics, price, .pred))
#  10-fold cross-validation
# A tibble: 10 x 6
   splits               id     recipes      fitted   predicted            evaluated
 * <list>               <chr>  <list>       <list>   <list>               <list>
 1 <split [38.8K/4.3K]> Fold01 <S3: recipe> <fit[+]> <tibble [4,316 × 2]> <tibble [3 × 3]>
 2 <split [38.8K/4.3K]> Fold02 <S3: recipe> <fit[+]> <tibble [4,316 × 2]> <tibble [3 × 3]>
 3 <split [38.8K/4.3K]> Fold03 <S3: recipe> <fit[+]> <tibble [4,316 × 2]> <tibble [3 × 3]>
 4 <split [38.8K/4.3K]> Fold04 <S3: recipe> <fit[+]> <tibble [4,315 × 2]> <tibble [3 × 3]>
 5 <split [38.8K/4.3K]> Fold05 <S3: recipe> <fit[+]> <tibble [4,315 × 2]> <tibble [3 × 3]>
 6 <split [38.8K/4.3K]> Fold06 <S3: recipe> <fit[+]> <tibble [4,315 × 2]> <tibble [3 × 3]>
 7 <split [38.8K/4.3K]> Fold07 <S3: recipe> <fit[+]> <tibble [4,315 × 2]> <tibble [3 × 3]>
 8 <split [38.8K/4.3K]> Fold08 <S3: recipe> <fit[+]> <tibble [4,315 × 2]> <tibble [3 × 3]>
 9 <split [38.8K/4.3K]> Fold09 <S3: recipe> <fit[+]> <tibble [4,315 × 2]> <tibble [3 × 3]>
10 <split [38.8K/4.3K]> Fold10 <S3: recipe> <fit[+]> <tibble [4,315 × 2]> <tibble [3 × 3]>

ハイパーパラメータのサーチ

Cross Validationで精度を計算する方法がわかったので、これを用いてハイパーパラメータのサーチを行います。 今回はmin_nのみグリッドサーチすることにします。

grid_min_n = c(5, 10, 15)
df_result_cv = tibble() # 結果をいれる
for (n in grid_min_n) {

  rf = rand_forest(mode = "regression",
                   trees = 50,
                   min_n = n,
                   mtry = 3) %>%
    set_engine("ranger", num.threads = parallel::detectCores(), seed = 42)

  tmp_result = df_cv %>%
    mutate(recipes = map(splits, prepper, recipe = rec),
           fitted = map(recipes, ~ fit(rf, price ~ ., data = juice(.))),
           predicted = pmap(list(splits, recipes, fitted), pred_wrapper),
           evaluated = map(predicted, metrics, price, .pred))

  df_result_cv = df_result_cv %>%
    bind_rows(tmp_result %>%
                select(id, evaluated) %>%
                mutate(min_n = n))
}

> df_result_cv %>%
+   unnest() %>%
+   group_by(min_n, .metric) %>%
+   summarise(mean(.estimate))
# A tibble: 9 x 3
# Groups:   min_n [?]
  min_n .metric `mean(.estimate)`
  <dbl> <chr>               <dbl>
1     5 mae                0.0671
2     5 rmse               0.0932
3     5 rsq                0.992
4    10 mae                0.0679
5    10 rmse               0.0940
6    10 rsq                0.991
7    15 mae                0.0686
8    15 rmse               0.0947
9    15 rsq                0.991

どうやらmin_n = 5の精度が最も良さそうです。 このパラメータを用いて訓練データ全体でモデルを再学習し、予測精度を確認します。 parsnipで作ったモデルはupdate()でパラメータを更新できます。

rf_best = update(rf, min_n = 5)

rec_preped = rec %>%
  prep(df_train)

fitted = rf_best %>%
  fit(price ~ ., data = juice(rec_preped))


df_test_baked = bake(rec_preped, df_test)


> df_test_baked %>%
+   bind_cols(predict(fitted, df_test_baked)) %>%
+   metrics(price, .pred)
# A tibble: 3 x 3
  .metric .estimator .estimate
  <chr>   <chr>          <dbl>
1 rmse    standard      0.0905
2 rsq     standard      0.992
3 mae     standard      0.0665

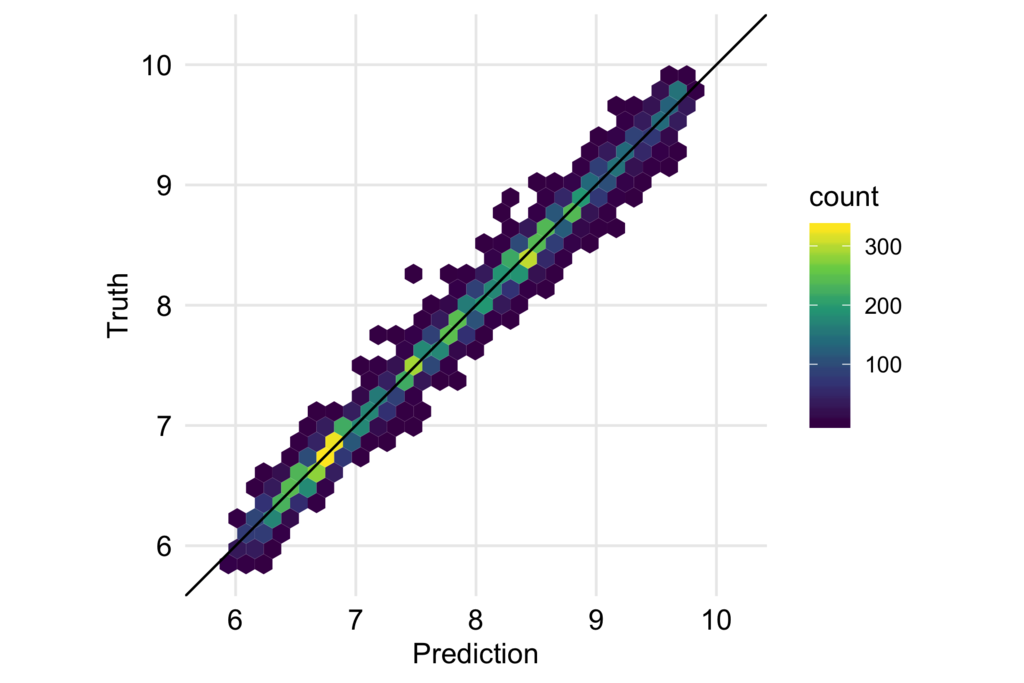

予測結果と実際の値もプロットして確認します。

df_test_baked %>%
  bind_cols(predict(fitted, df_test_baked)) %>%
  ggplot(aes(.pred, price)) +
  geom_hex() +
  geom_abline(slope = 1, intercept = 0) +
  coord_fixed() +
  scale_x_continuous(breaks = seq(6, 10, 1), limits = c(5.8, 10.2)) +
  scale_y_continuous(breaks = seq(6, 10, 1), limits = c(5.8, 10.2)) +
  scale_fill_viridis_c() +
  labs(x = "Prediction", y = "Truth") +
  theme_minimal(base_size = 12) +
  theme(panel.grid.minor = element_blank(),
        axis.text = element_text(color = "black", size =12))

f:id:dropout009:20190109213420p:plain

大きく外したり系統的なバイアスも見られないので、うまく予測できていると言えるのではないかと思います。

まとめ

tidymodels配下のパッケージ、特にpurrrrsampleを用いることでtidyにCross Validationを行うことができました。
